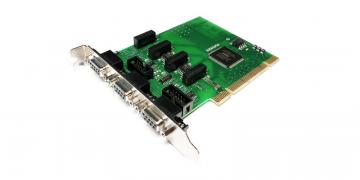

Computer interface Board for connecting up to 4 absolute linear or angular encoders with a supply voltage of +5V and the results up to 32 bit of binary code SSI serial RS442. The fee is designed to be installed inside the unit to a personal computer PCI bus.
For the connection of encoders used 37 pin socket DBR37F. External power supply for sensors not required - the power for them comes from the computer.
in Addition to the transducers move to the Board you can connect up to 4 digital signals from external devices. You can connect the touch sensors, limit switches, outdoor timer, etc. Connector for external signals made in the form of an additional mounting bracket. If you do not want to use additional signals, extra tie-down strap is not required.
the Board does not take up much space inside the computer (71х130 mm), but at the same time is not galvanically isolated. For operation in harsh industrial environments we recommend using a fee LIRE-941-PCI-9pin-G2 with full galvanic isolation.
Working with possible cost of free software "SKIF". The communication Protocol with the Board is open and described in detail for programmers. To simplify the development of own software, we provide dll library, which contains routines to access the registers of the Board. br>
Used in control systems of simple machines, constructed on the basis of a personal computer. In conjunction with the transducers move, they implement feedback on the status of the instrument. Can be used for the modernization of measuring microscopes, as well as when other tasks.
File | Size | Published | |
---|---|---|---|
Библиотека и пример программирования.ZIP | 154.06 KB | 7 Feb 2024 | |
Драйвер Windows.zip | 22.98 KB | 7 Feb 2024 | |
ПО Скиф 1.11.zip | 2.4 MB | 7 Feb 2024 | |
Техническое описание.pdf | 323 KB | 7 Feb 2024 |
